river rigs for big catfish

this is the simple rig used in river and lake fishing. It is the simplest rig to tie and use, the fish feels no resistance
from the sinker till it's too late. (thanks to Jim Pauley for this picture)

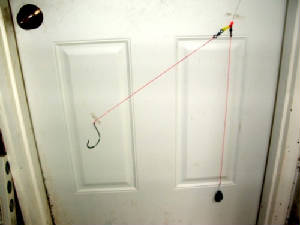

This rig allows the bait more freedom in the strike zone. With a simple bobber stop and small float on the leader line
you can adjust where the bait will float or you can just allow the bait to float natural in the water, this rig is used when
the catfish are suspended off the bottom and inactive and you need to put the bait in their faces.(thanks to Jim Pauley for
this picture)

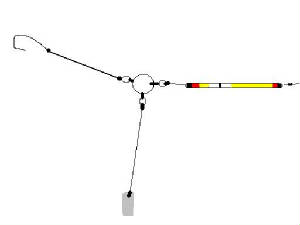

This is a floating three way rig, it is used while drifting, or when over brush and stumps when a light touch is need
to prevent hand-ups.

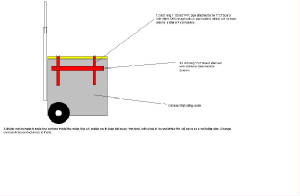

This is a 50qt. Coleman wheeled cooler with a 1x3 bolted to the sides with stainless steel 3/16 pan head bolts ,and
fender washers on the inside, the two section of PVC pipe are attached to the 1x3 with pipe clamps or pipe holders, a divider
can be made for the inside to keep the bait from the food, with a bag of ice and drinks this will make a good pole holder
for any bank fishing area.
Cooler
Live Well
I use a 120 qt. coleman cooler for this and it works well but a smaller one can be used. I use a 500GPH bilge pump
and a 24 inch section of PVC pipe with one end caped. I use #10x3/4 stainless steel sheet metal screws to attach the pump
to the wall of the cooler. I then attach the 1/2 inch PVC pipe with 10, 3/16 inch holes drilled along it's length to
the side or lid with pipe clamps in the same manner. I then attach the hose from the pump to the pipe and hook it up to a
battery. I have a toggle switch on the pump wire to turn it on and off so as not to have to keep messing with the battery
connection.
I dip out about 4 gallons of water every hour and replace it with fresh river water and turn the pump on for 15 min. every
half hour. I have kept two 55#+ cats alive in this set-up for 5 hours with no problems
 |
List of Tips
Tip 1: basic bottom rig
simplest for of rigging and one of the strongest
Tip 2: three way slider rig
used when the fish are suspended (several way to set up)
Tip 3: soft touch bottom bouncing rig
used for drift fishing, and in
stump fields and brush piles.
Tip 4: bank fishing wheeled cooler/cart
a must for all bank fishermen
Tip 5: cooler live well
most smaller boats will need one

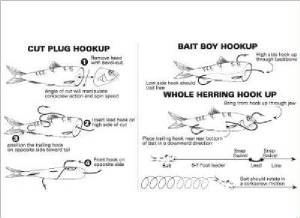

Tip 6: rigging cut bait

A chart for rigging cut bait

|
 |
